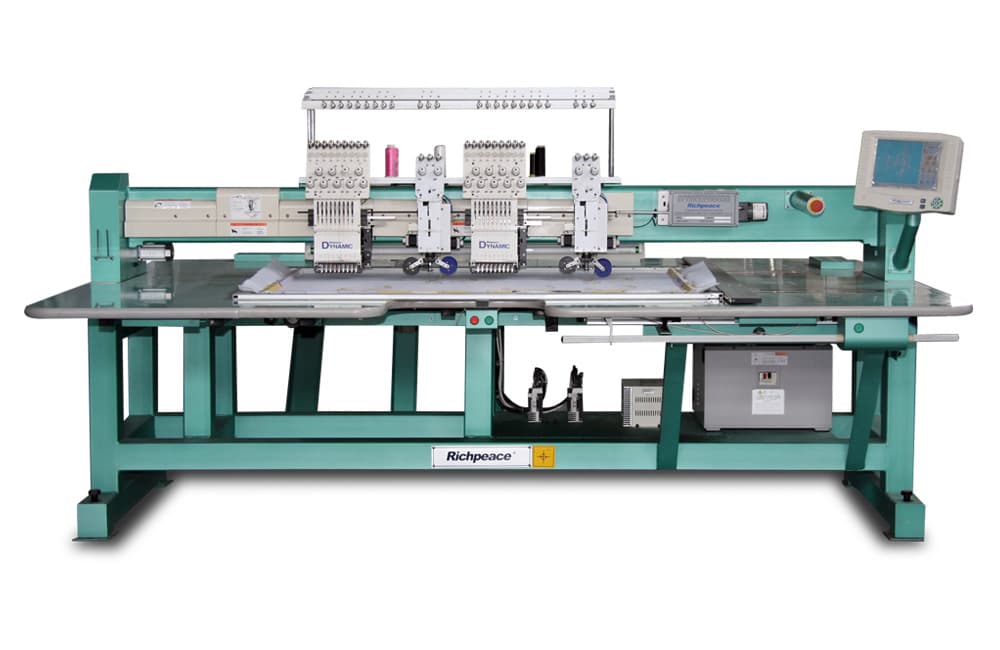

Richpeace Computerized Mixed Coiling Embroidery Machine

Speed: 650-1000rpm/min
Size
Power: 0.8~3.0KW
Voltage: 220V/380V

Application Widely used on clothes, craftwork, study in school.

Categories: ,
Description

Product Video

Product Introduction

  • Alternative embroidery machine type: it enables to select flat

    embroidery or coiling embroidery automatically with high efficiency.

  • Adjustable zigzag device: the stitch length can be set up on the

    operation panel from 6mm to 16mm, to avoid the collisions with

  • needles during thick rope embroidery.
  • Easy change of coiling feeding devices: different type of feeding device on the coiling heads can be changed by hand very easily.
  • According to material thickness, presser foot lifting adjustable
  • range is 0-6mm.
  • Automatic stitch data creation of zigzag devices: the 6 types of zigzag stitches can be processed in flat embroidery stitch data, so it is easy to create zigzag stitch data.
  • Flat embroidery or coiling embroidery or laser cutting or sequin embroidery can be alternative.

Product Parameters

Model Heads Embroidery Area Max. Speed Weight(kg) Power(kw) Input Power Machine Dimension
Flat Coiling Cording L W H
CL-902 2 550*680 1000 650 650 900 0.8

Single-phase

220V/50Hz

Three-phase

380V/50Hz

 2873 2020 1650
PC-02 400*680 X 650 650 800 2183 2020 1650
CL-904 4 550*680 1000 650 650 1300 1.5 4429 2020 1650
PC-04 400*680 X 650 650 1100 2983 2020 1650
CL-906 6 550*680 1000 650 650 1700 2.0 5529 2020 1650
PC-06 400*680 X 650 650 1500 4026 2093 1650
CL-908 8 550*680 1000 650 650 2300 1.5 6629 2093 1650
PC-08 400*680 X 650 650 2100 4826 2093 1650
CL-910 10 550*680 1000 650 650 3000 3.0 7833 2093 1650
PC-010 400*680 X 650 650 2300 5626 2093 1650
CL-912 12 550*680 1000 650 650 3400 3.0 8829 2093 1650
PC-012 400*680 X 650 650 2600 6426 2093 1650
Sequin Device L:left side single sequin device R: right side single sequin device LR: dual side single sequin device LT: left side double sequin device RT: right side double sequin device LRT: dual side double sequin device
Cording Device C: simple cording device TC: tracing cording device
Boring Device B
Laser Cutting Device LS
Looping Device LP
